Treehouse and Playhouse Plans: 6 DIY Kids’ Structure Builds
A treehouse or backyard playhouse is the woodworking project that kids remember for the rest of their lives. It’s also one of the most technically rewarding builds for the parent — real structure, real loads, real engineering decisions, and a finished product that gets used every single day. These plans cover everything from a basic ground-level playhouse anyone can build in a weekend to a multi-level treehouse with a rope bridge. All six designs use standard dimensional lumber and basic fasteners available at any home center.
Ted’s Woodworking has complete treehouse and playhouse plans with structural diagrams, hardware specs, and finishing guides for every skill level. Browse Ted’s kids’ structure plans →

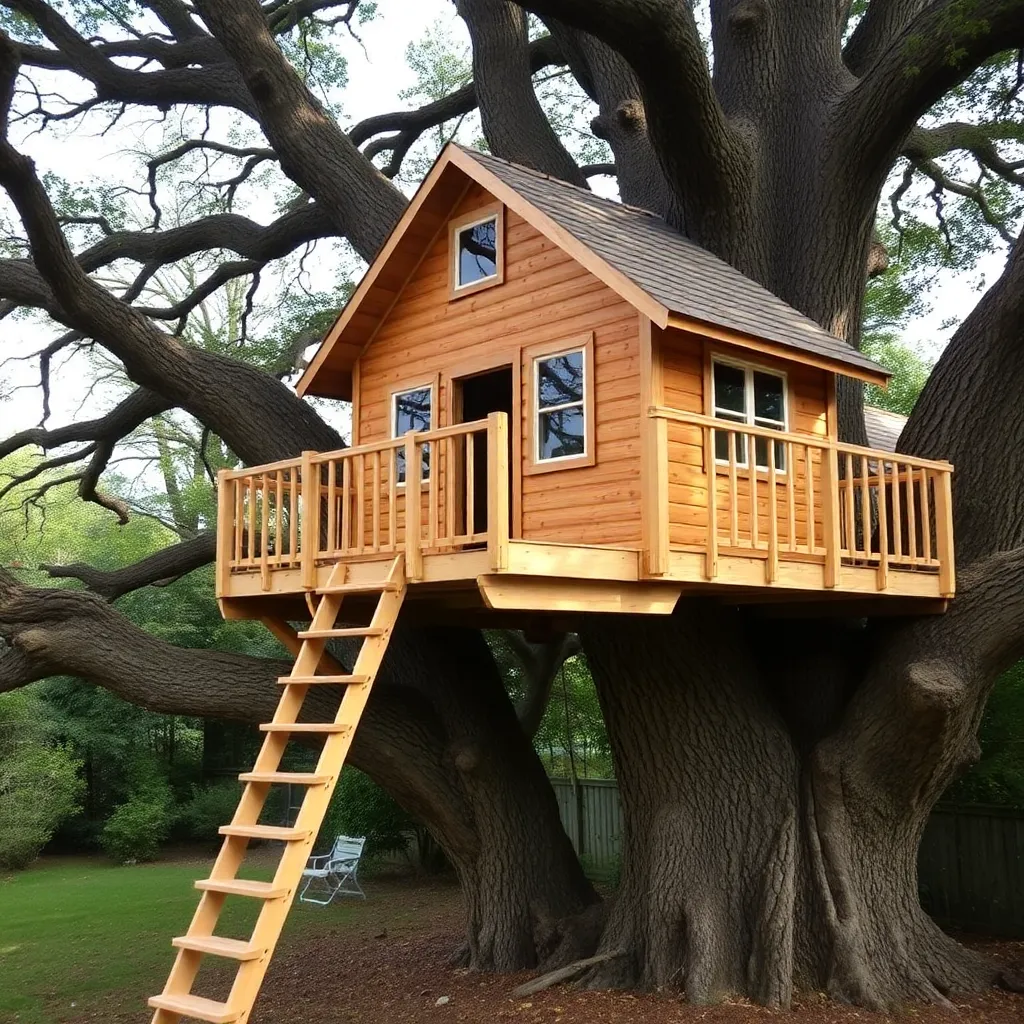

Tree House Plans
A full treehouse mounted in a mature tree is the benchmark build — elevated platform, walls, roof, and a ladder or staircase for access. Tree house plans here cover a 6×8-foot single-level treehouse in a single tree using TAB (treehouse attachment bolt) hardware for structural connection, a rope-ladder and fixed-ladder entry system, and a basic shed-style roof with metal roofing for weatherproofing. The design works for any tree with a trunk diameter of 12 inches or larger and a crotch or major branch within 10 feet of the ground.

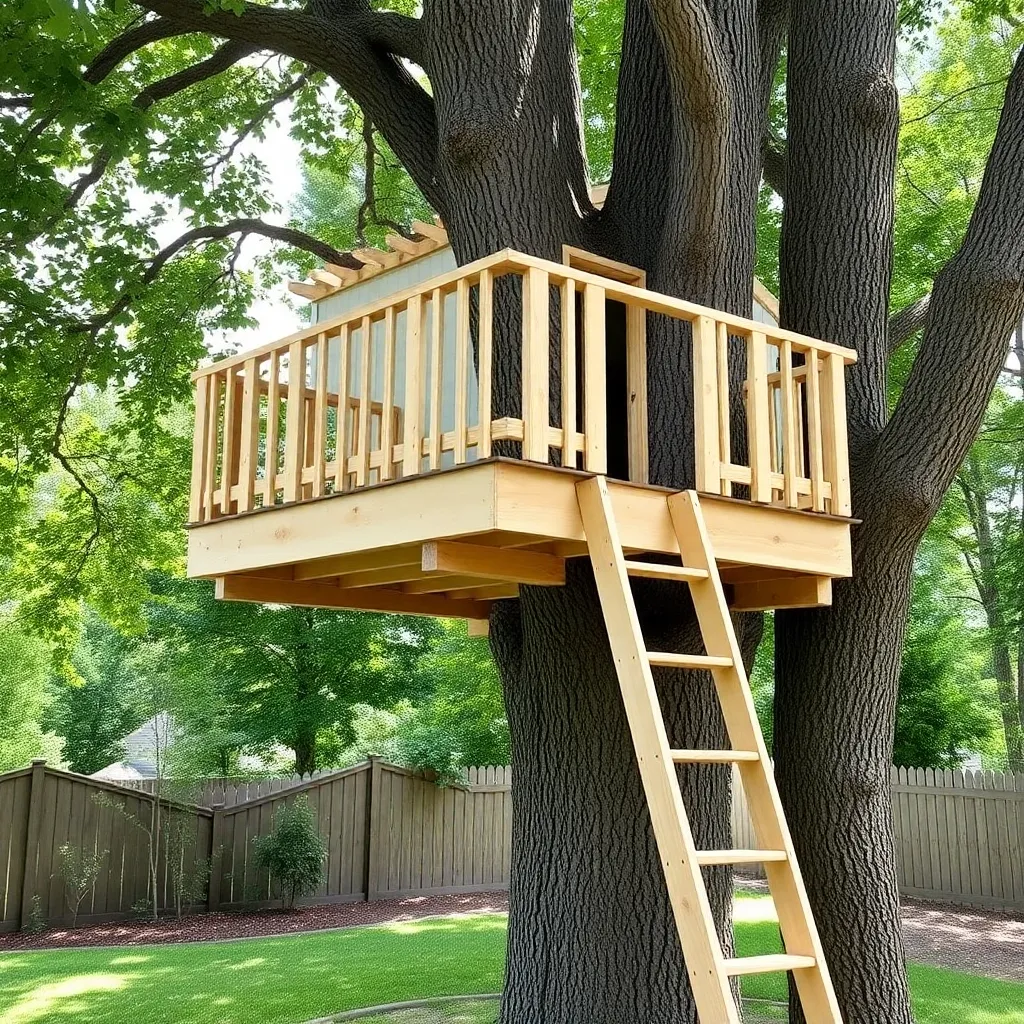

Simple Treehouse Plans
Not every treehouse needs to be complex. Simple treehouse plans cover a basic 4×4-foot platform with railing, a single ladder, and an optional roof — buildable in one weekend with basic tools and under $300 in materials. The simple design is ideal for first-time builders, smaller trees, or younger children who need a safe, low platform rather than a full enclosed structure.

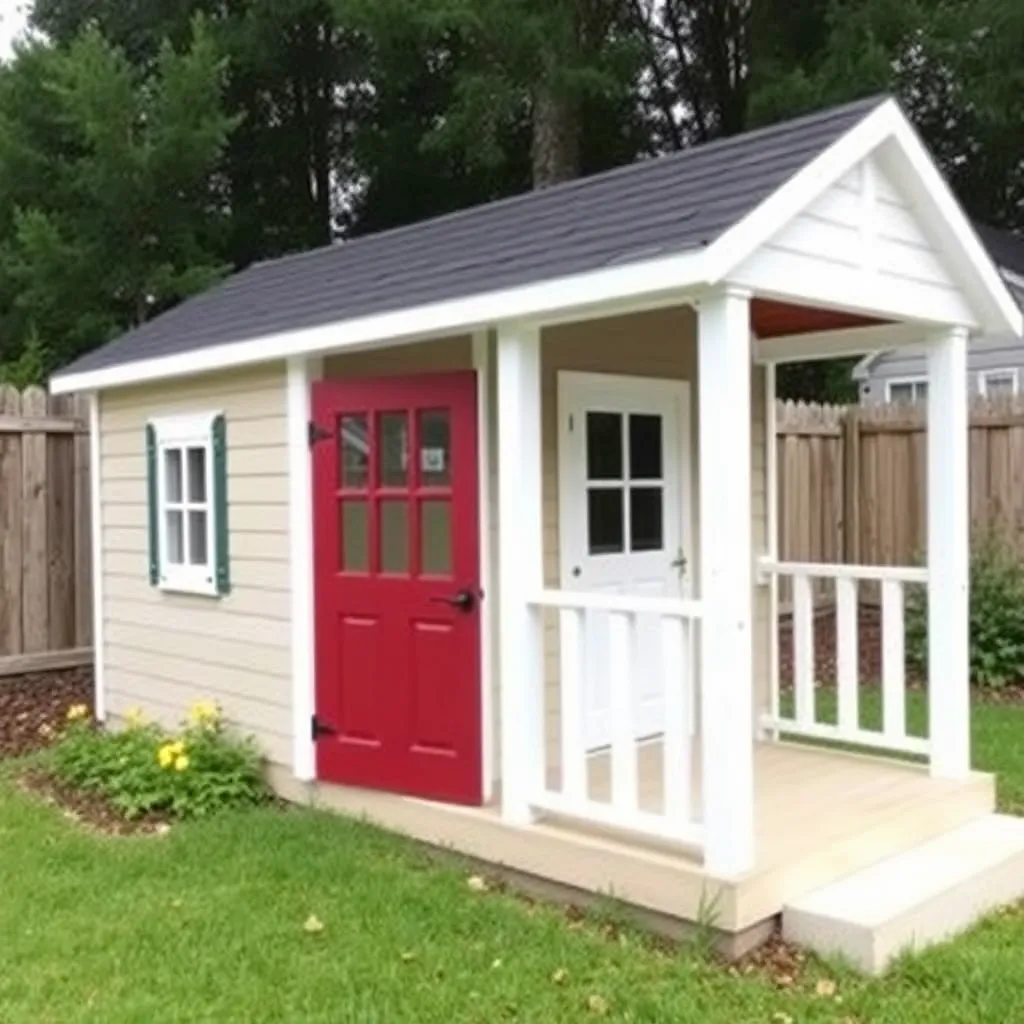

DIY Playhouse Plans
A ground-level playhouse is the right choice when there’s no suitable tree, for younger children, or for parents who want a simpler build. DIY playhouse plans cover a 6×8-foot enclosed playhouse with a covered porch, Dutch door, two windows, and a gabled roof — a complete mini-house built from 2×4 framing and plywood siding. The entire structure can be assembled by two adults in a weekend.

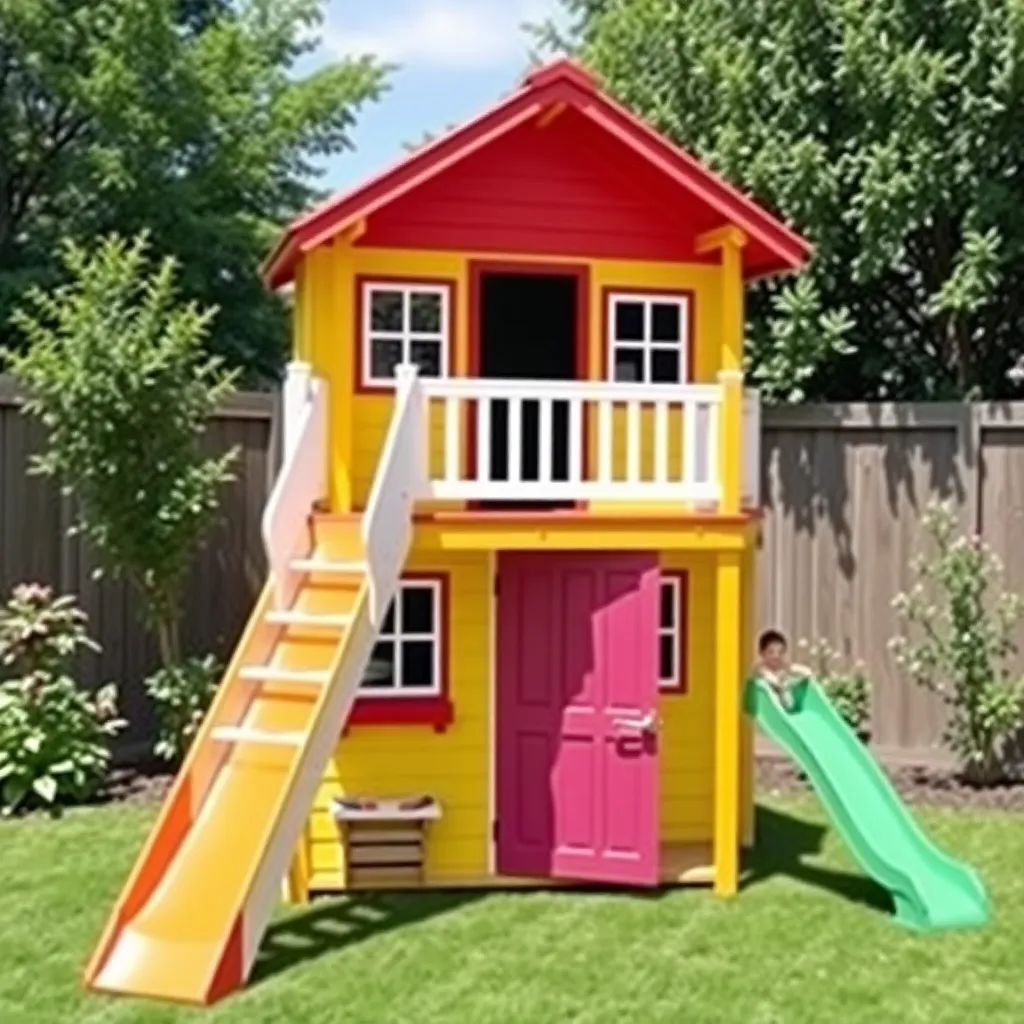

Kids Playhouse Plans
A kids’ playhouse designed specifically for imaginative play goes beyond a basic box. Kids playhouse plans here cover a cottage-style playhouse with a loft, a slide exit, a built-in bench, and a chalkboard wall — the kind of structure that stays interesting for years rather than months. Sized for children up to age 10, built from standard framing lumber with a lifespan of 15–20 years.

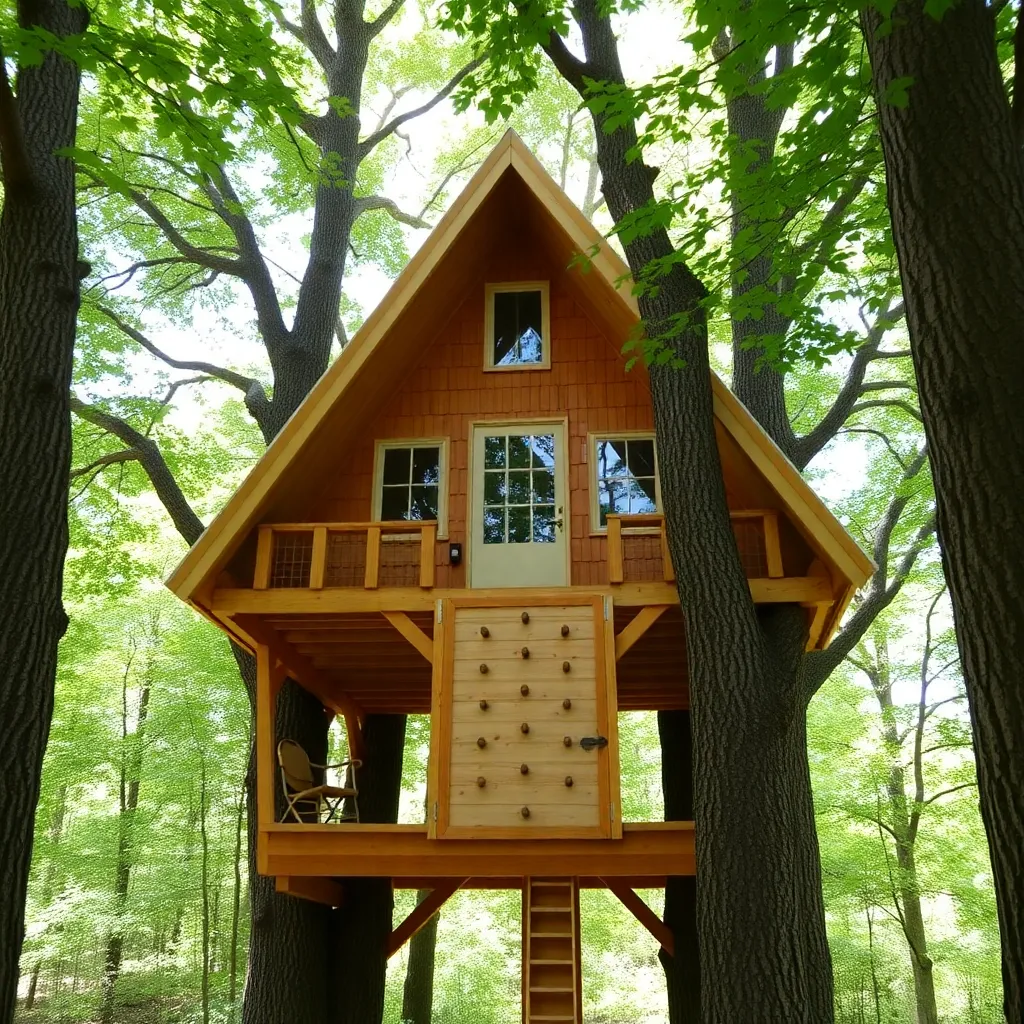

A-Frame Treehouse Plans
The A-frame is the most structurally efficient treehouse design — the sloped sides act as both walls and roof, eliminating the need for a separate roofing system and making the entire structure waterproof by design. A-frame treehouse plans cover a 6×8-foot A-frame mounted between two trees using a double-beam support system, with a hinged door, climbing wall on the exterior, and sleeping loft inside. The steeply pitched roof sheds snow and rain without additional weatherproofing.

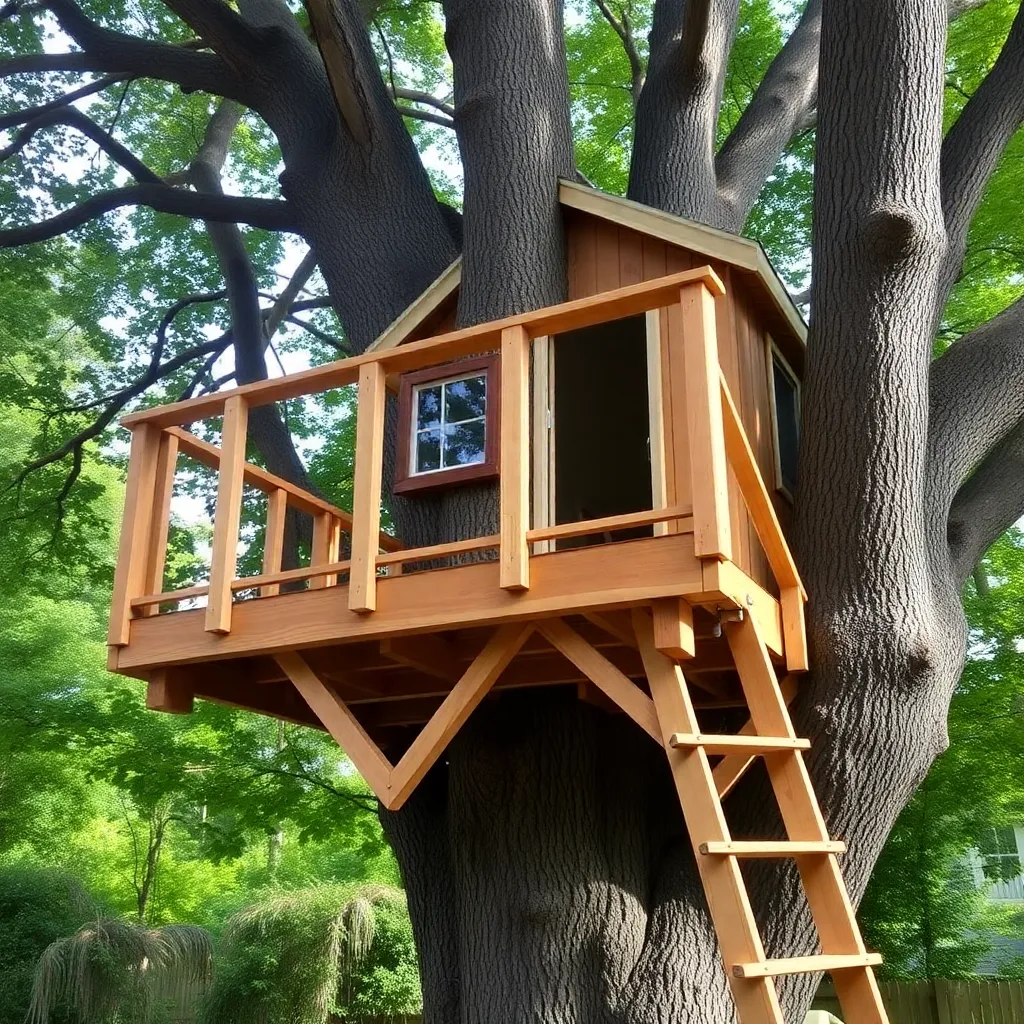

Treehouse Platform Plans
A platform-first build is the smartest approach for first-time treehouse builders — get the structural foundation right before adding walls, roof, and accessories. Treehouse platform plans cover a 6×8-foot and an 8×10-foot platform design using knee braces and TAB hardware, with full attachment calculations for common hardwood species and a guide to adding optional railings, a roof frame, and a rope bridge connection to a second platform.
Choosing Between Treehouse and Playhouse
Ted’s Woodworking has over 16,000 step-by-step plans with cut lists, materials lists, and detailed diagrams. Browse Ted’s plans →
| Feature | Treehouse | Ground Playhouse |
|---|---|---|
| Requires mature tree | Yes (12″+ diameter) | No |
| Minimum age | 4–5 years | 2–3 years |
| Build difficulty | Moderate–Hard | Easy–Moderate |
| Cost range | $400–$1,200 | $150–$500 |
| Permit required | Often yes | Sometimes |
| Longevity | 10–20 years | 10–15 years |
For children under 4: ground playhouse. For a first build: simple platform treehouse or A-frame. For a long-term landmark structure: full treehouse with enclosed walls and roof.
Ted’s Woodworking has over 16,000 step-by-step plans with cut lists, materials lists, and detailed diagrams. Browse Ted’s plans →
Treehouse and Playhouse Plans FAQ
Do I need a permit to build a treehouse?
In most jurisdictions: yes, if the structure is permanent (attached to a tree with hardware) and has a floor height above 30 inches. Check with your local building department before starting. Many municipalities exempt small, freestanding playhouses under 200 square feet and under 10 feet tall. Treehouses attached to trees with lag screws or TABs are almost always treated as structures requiring permits.
What wood is best for an outdoor treehouse or playhouse?
Pressure-treated lumber (ACQ or CA) for all ground contact and near-ground framing. Standard construction lumber (Douglas fir or Southern yellow pine) for the platform frame and walls. Cedar or redwood for any trim, siding, or decking — they’re naturally rot-resistant and hold paint well. Avoid untreated pine for any structural members that will be exposed to moisture — it rots within 5 years.
How do I attach a treehouse to a tree without killing it?
Use TABs (treehouse attachment bolts) — large galvanized or stainless steel bolts designed specifically for treehouse attachment. One TAB per tree per support point. Trees grow around bolts and continue to live for decades. Never use multiple lag screws clustered together, wire, or chain — these girdle the tree and cause slow death over 3–7 years.
What is the safest height for a kids’ treehouse?
4–6 feet for children under 8. 6–10 feet for children 8 and older with proper railings (36-inch minimum height, no more than 4 inches between balusters). Anything over 10 feet requires a building permit in most areas and is generally not appropriate for unsupervised children. Railings are non-negotiable at any height above 30 inches.
How long does it take to build a treehouse?
A simple platform: 1 weekend (2 adults, 8–10 hours total). A full enclosed treehouse: 2–3 weekends. A complex multi-level structure: 4–6 weekends. The longest phase is always the platform — once that’s solid and level, the rest goes quickly.
